Willoughby Council – The Concourse 100kW PV System

will1
will2
will3

Project Details

Service: Feasibility Assessment, Design
Client: Willoughby Council
Date: 2015
Location: The Concourse, Chatswood, NSW
Module: 316 X LG NeoN 315W (or similar)
Inverter: 4 X SMA STP25000TL-30 (or similar)
Peak Capacity: 99.54kWp
Energy Generated: 134.8 MWh/yr
CO2-e Savings: 142.5 tonnes of emissions/yr

About this Project

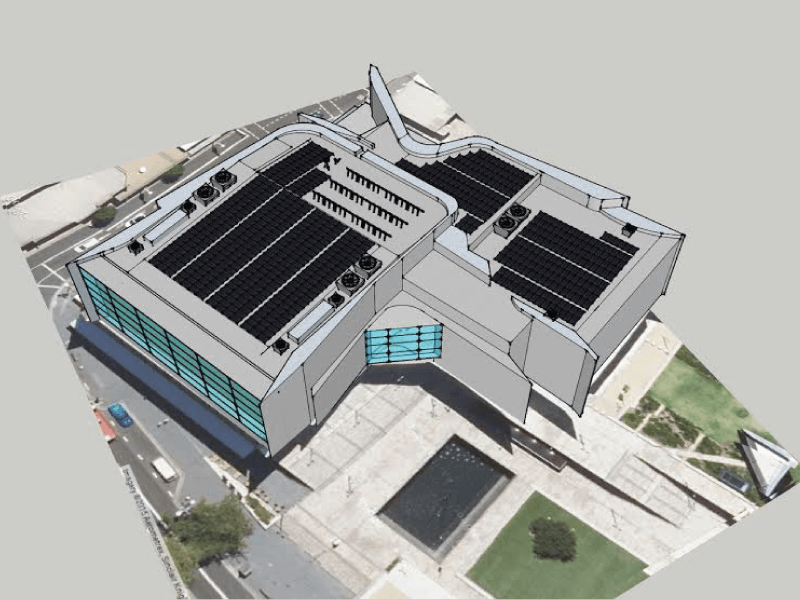

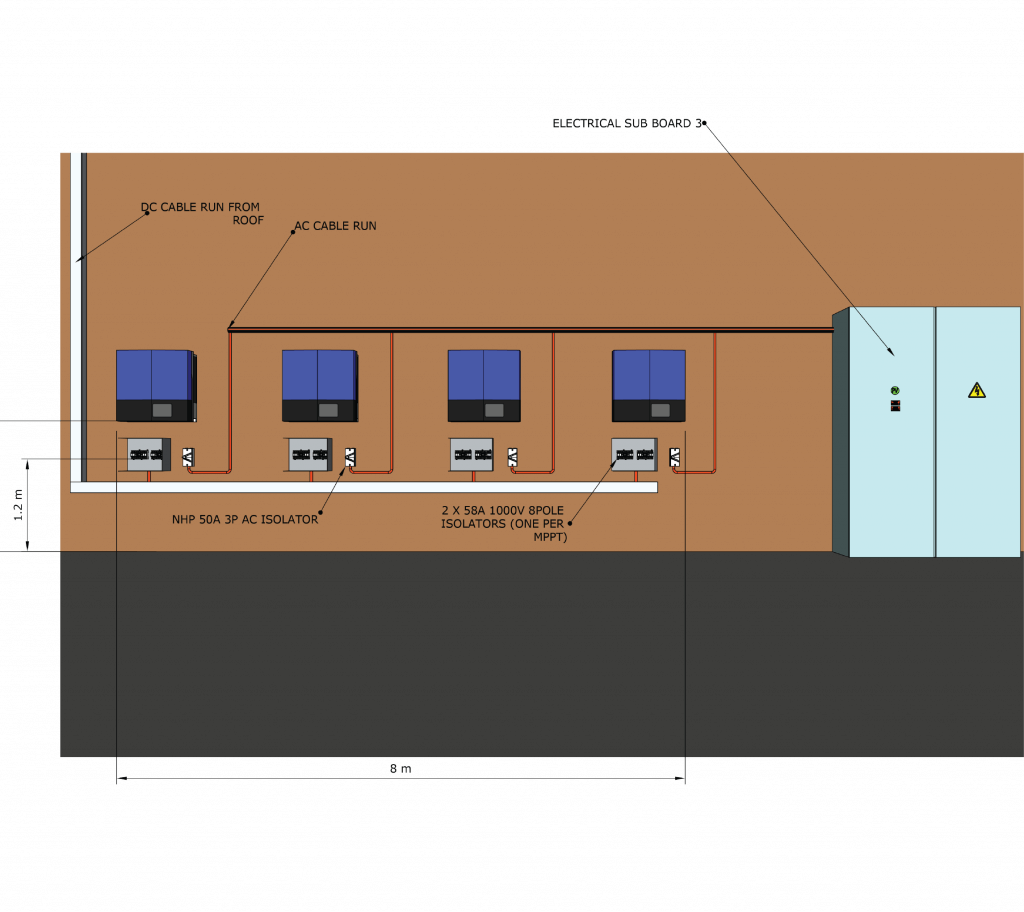

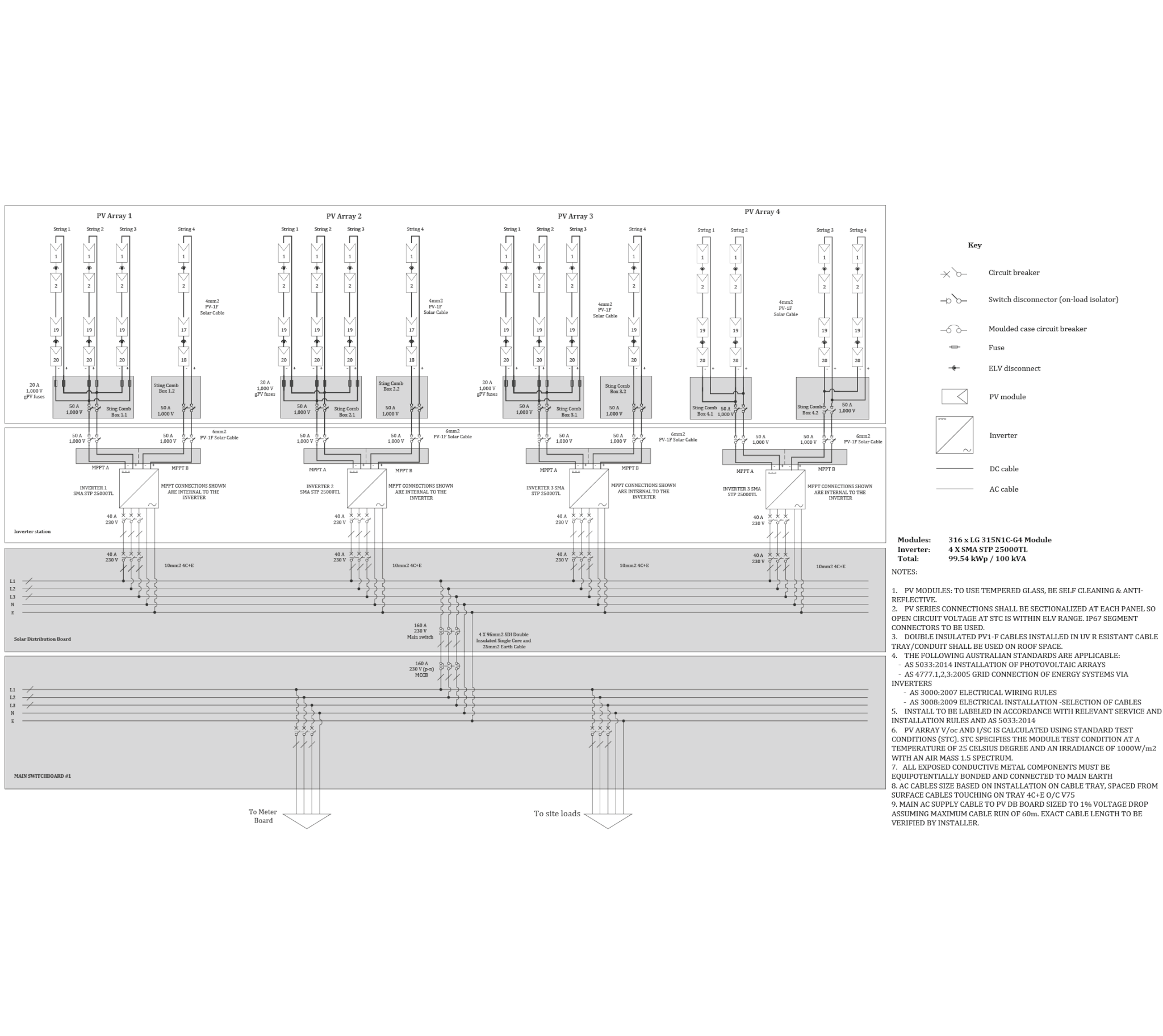

GSES created a 100kW PV system concept design for Willoughby Council’s “The Concourse” building, which is a flagship council asset. GSES produced the array plan, concept bill of materials with system costing and financial analysis, a single line diagram as well as a virtual flyover video to illustrate the concept. Willoughby Council will review the concept for potential request for tender.
