Bartlett’s – 99.84kW PV System

Project Details

Service: Design
Client: C.E. Bartletts
Date: 2015
Location: Wendouree, VIC
Module: 384 X Jinko Solar 260W Poly
Inverter: 4 X SMA STP25000TL-30
Peak Capacity: 99.84kWp
Energy Generated: 124.1 MWh/yr
CO2-e Savings: 131.5 tonnes of emissions/yr

About this Project

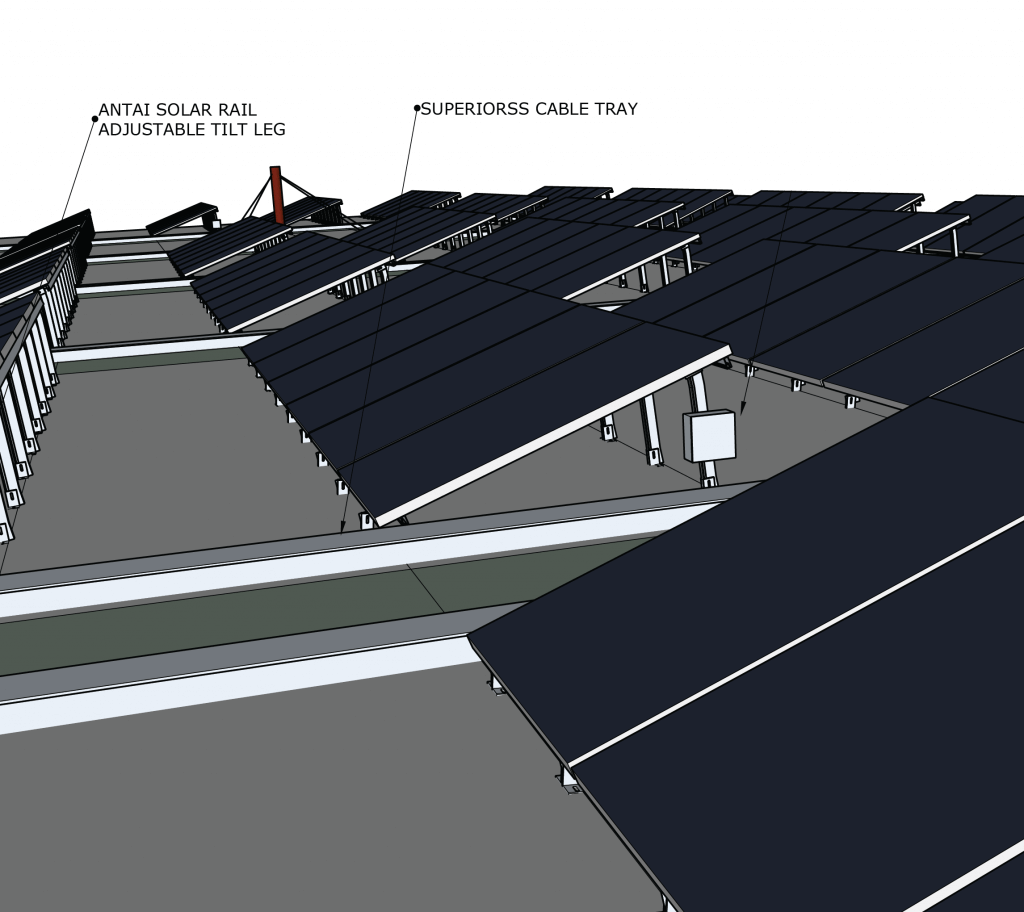

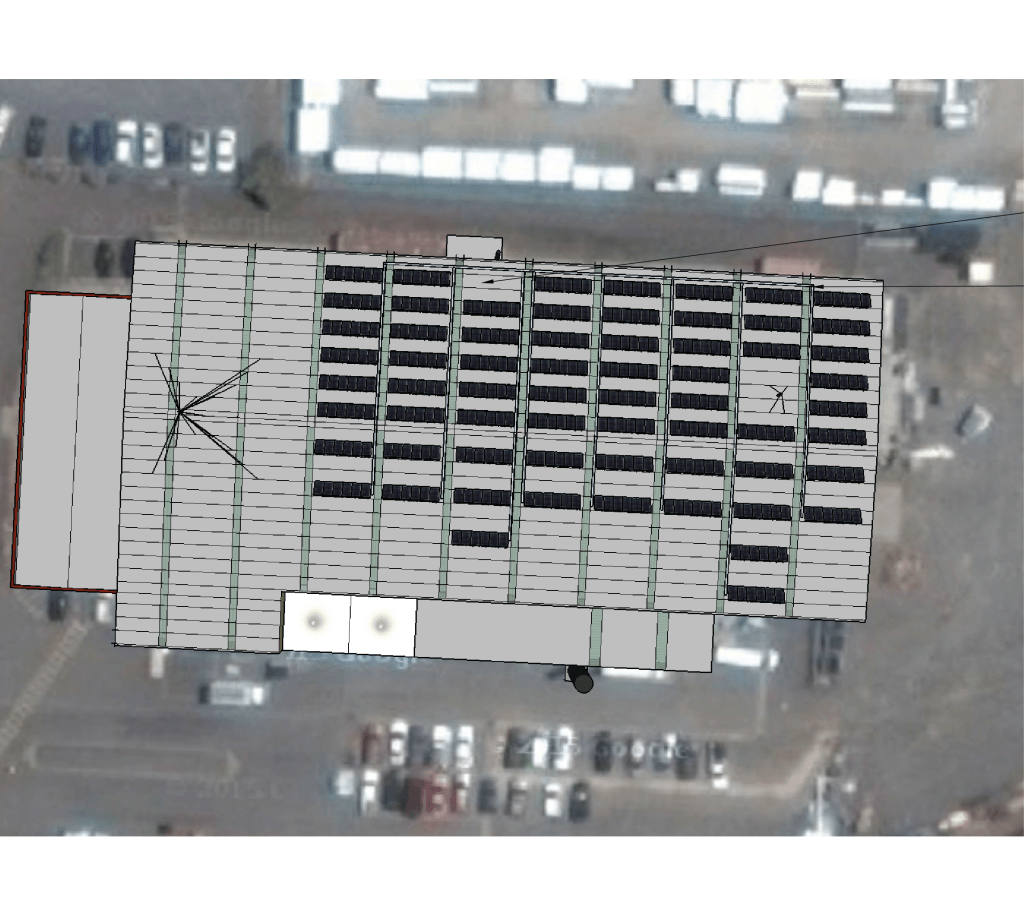

GSES created the full system design for C.E. Bartletts in Wendouree, VIC on behalf of Next Generation Electrical. The ~100kW PV was installed to reduce the energy consumption at the site. GSES created the array plan, single line diagram, the string layout plan, the mounting instruction, the bill of materials, and the zero export circuit diagram for the project developer; Next Generation Electrical. GSES also took responsibility for administering the distribution network service provider (DNSP) utility application process through to approval.
