3D Solar Installation Course


Self-paced Online Course | 1 Year Access

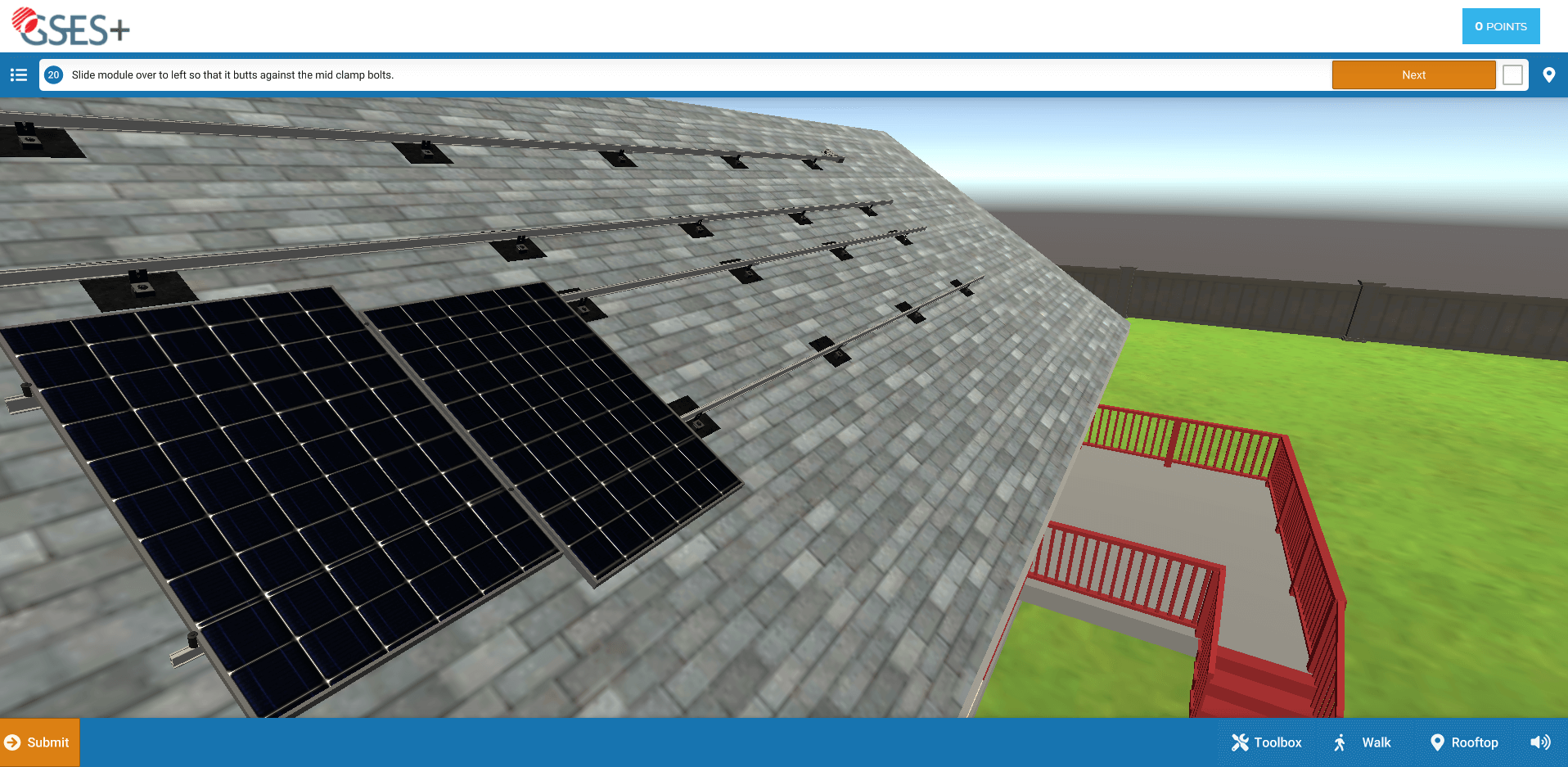

Experience the realistic 3D Virtual Solar Installation course for your personal development or company training. Perfect for engineers, salespeople and electricians new to solar, this course will bridge the knowledge gap in a fun & interactive simulation. Learn how to install solar with no electrical or fall hazards, in any weather, at your own pace. Visual learners will excel with the simulations and all users will retain information better than reading. This course is not specific to Australian requirements or standards, and is applicable to an international audience.

Virtual Solar Installation consists of 6 self-paced training modules which incorporate 3D simulations, videos, quizzes and additional resources.

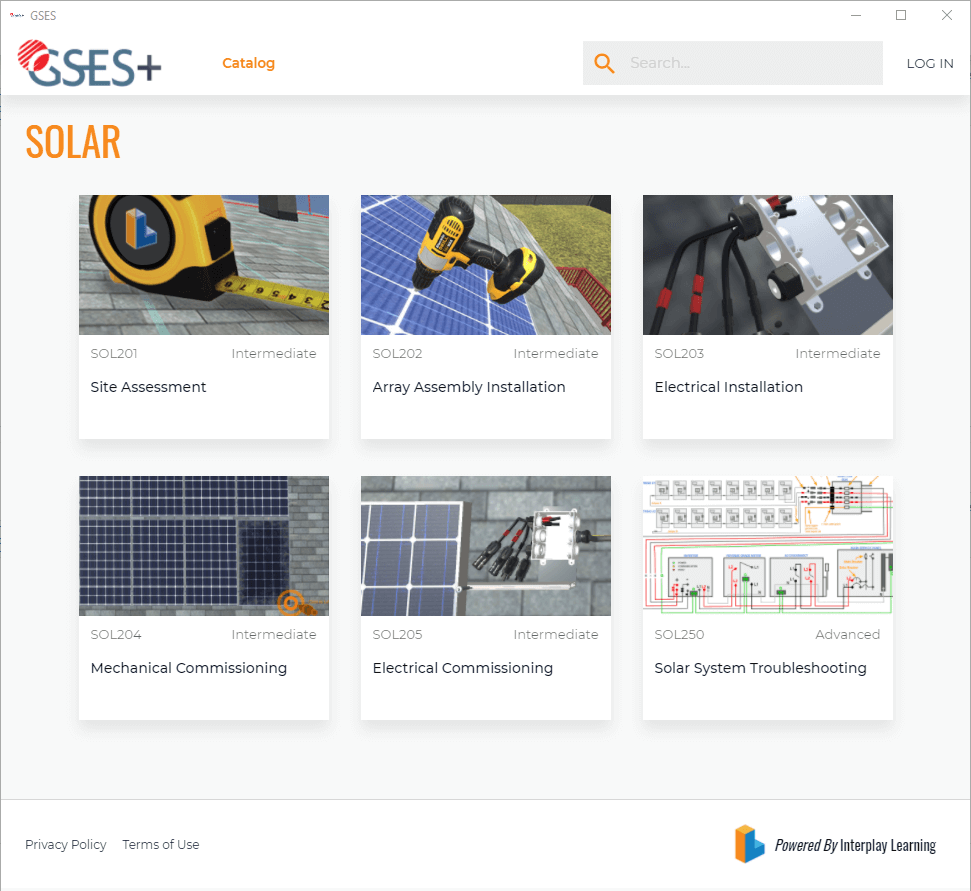

1: Site Assessment 2: Array Assembly Installation 3: Electrical Installation 4: Mechanical Commissioning 5: Electrical Commissioning 6: Solar System Troubleshooting

Watch the Intro video to Module 2: Array Assembly Installation below:

Enrolment Process

Once purchased, please allow one business day for our team to process your order and establish your account. You will receive an email with your login details, when complete.

Course Outline

The Solar Simulations course consists of 6 individual training modules, each of which contain a range of simulations, videos, and other activities.

Note: Not every learning module or simulation is VR Compatible at this time.

Module 1: Site Assessment

  • Assess ground conditions for safety, workability and potential inverter placement issues
  • Observe main service panel for amperage capacity, breaker space availability and model info
  • Recognize roofing hazards and types of pre-existing damage that could affect array placement
  • Identification and exact location of roof obstructions
  • In-attic observation of rafter size, spacing, and any pre-existing water damage

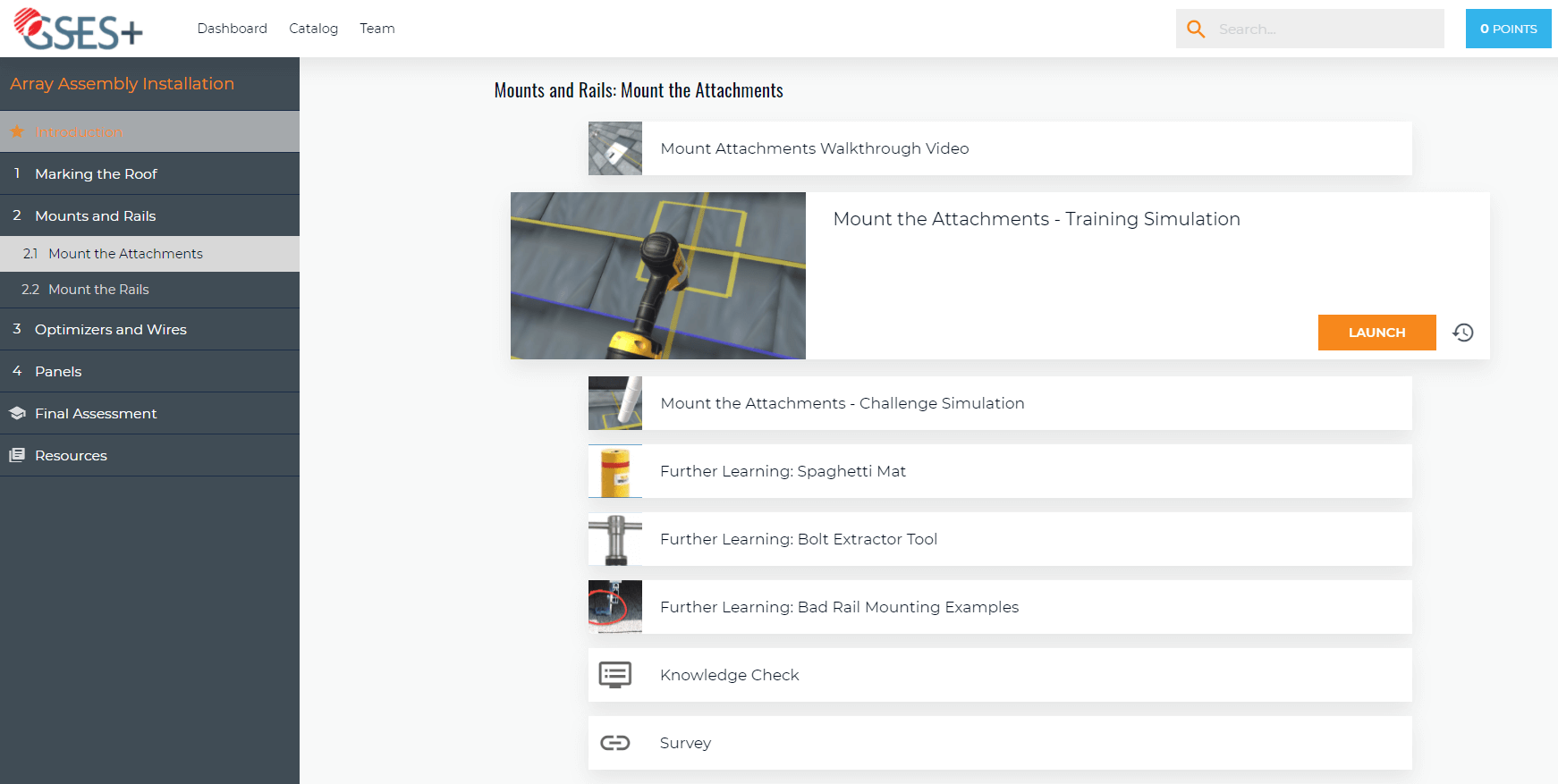

Module 2: Array Assembly Installation

  • Setting array boundary to respect fire setback restrictions and aesthetics
  • Finding and marking of rafter/truss locations and centering the array over them
  • Proper attachment of flashed mounts over rafters/trusses and above shingle drip edge
  • Assembly of rail sections with splices and attachment to ‘L’ feet
  • Attachment of optimizers to rails and securing wiring above roofing with clips and ties
  • Assembly of jumpers using MC4 connectors and crimping tool
  • Securing solar modules to rails with attachment hardware and torque wrench

Module 3: Electrical Installation **VR COMPATIBLE**

  • Securing equipment enclosures to walls with anchor bolts
  • Connecting EMT conduit sections with connectors, couplings and LL, LR and LB bodies
  • Creating a flashed roof penetration
  • Pulling conductors with a fish tape from a wire spool caddy
  • Stripping and connecting wires to a variety of terminals
  • Installing NEC labeling on equipment, disconnects and conduit

Module 4: Mechanical Commissioning

  • Learn why a mechanical check must be performed prior to an electrical commissioning
  • Explore why it is important to take some time to make sure everything has been installed correctly
  • Discover the specific steps involved in performing a mechanical solar system check
  • Master through simulated training and challenge practice scenarios how to perform a mechanical solar inspection by checking all the essential components of a solar array system to make sure they were installed and labeled correctly, including:
    • array check
    • conduit and roof penetration check
    • labelling check
    • wiring and enclosures check

Module 5: Electrical Commissioning

  • Use of a digital multimeter to confirm polarity and proper voltage in array conductors
  • How to create closed loops of long conductors to confirm continuity of circuits
  • Use of a digital megohmmeter to perform conductor insulation resistance testing
  • Sequencing of AC equipment activation to safely energize the solar power system

Module 6: Solar System Troubleshooting

  • Diagnose and repair electrical problems by applying a systematic root cause analysis
  • Diagnose and repair DC (array side) failures due to switches off or disconnected wires
  • Diagnose and repair AC (utility side) failures due to damaged or shorted wires in enclosures, small solar breaker or utility service interruption
  • Diagnose and repair Low Power conditions due to array wiring connection mistakes on the DC side
  • Diagnose and repair Ground Fault conditions due to damaged or shorted DC wiring or pinched module or optimizer wires
Materials and Equipment

Do I Need to Buy VR Equipment?

No, you do not need to use VR equipment. This course can be completed via computer, mobile device or tablet.

If you would like to use VR, We recommend:

Note: Not every learning module or simulation is VR Compatible at this time.

Delivery Method and Duration

This course is delivered online at the student’s own pace. The entire course of 6 modules is approximately 34 hours of training.

Note: Not every learning module or simulation is VR Compatible at this time.
